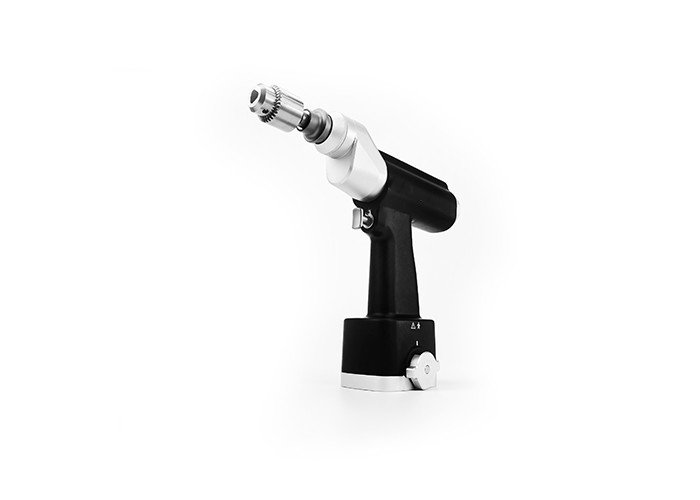

ND-2511 Electric Orthopedic Bone Drill Dual Functional Tool
- Dual functional cannulate drill for k-wire and interlocking nail surgery
- Input Voltage: 110V-240V/50Hz, Output Power: ≥120W, Battery Capacity: 1800mAh
- Drill speed: 650/1000rpm optional, Sterilizing Temperature: 135℃
- Drill chuck clamping diameter: 0.6-6/0.8/8mm, Noise: ≤65db
- Battery chariging time: 2 hours, Unit rise of temperature: ≤20℃
- SKU
- MJ-0545
- Brand
- Jeggar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The powerful and stable dual functional cannulate drill is mainly used for holding k-wire, intraumedullary interlocking nail surgery and arthroscopic surgery. It can resist high temperature and high pressure up to 135 centigrade, Besides, we can offer different interfaces like AO, Stryker, Hudson etc.
|
SPECIFICATION
|
STANDARD CONGIFURATION
|
||
|
Input Voltage
|
110V-240V/50Hz
|
Drill handpiece
|
1pc
|
|
Output Power
|
≥120W
|
charger
|
1pc
|
|
Battery Capacity
|
1800mAh
|
Battery
|
2pcs
|
|
Drill speed
|
650/1000rpm optional
|
Aseptic battery transfer ring
|
2pcs
|
|
Sterilizing Temperature
|
135℃
|
drill chuck
|
1pc
|
|
Drill chuck clamping diameter
|
0.6-6/0.8/8mm
|
key
|
1pc
|
|
Noise
|
≤65db
|
operating maual
|
1pc
|
|
Battery chariging time
|
2 hours
|
Aluminum case
|
1pc
|
|
Unit rise of temperature
|
≤20℃
|
Sterilization case
|
optional
|

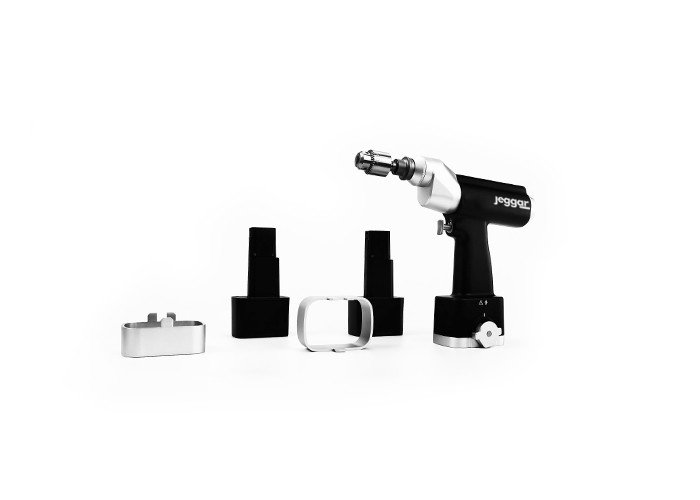

1,Aseptic battery transfer ring 2,Battery 3,Charger 4,Drill chuck
5,Handpiece 6,Button 7,Handle 8,Lid 9,key
-
Highlight
Surgical Orthopedic Bone Drill
,Dual Functional Orthopedic Bone Drill
-
PropertiesOrthopedic Surgical Instruments
-
TypeAwl
-
ApplicationOrthopedic Instruments Broken Screw Extractor
-
UsageSurgical Power Tools
-
CertificateCE ISO13485
-
Warranty2 Years
-
Max. Drilling Diameter4.2mm
-
No-Load Speed600-1000r.m.p
-
Drill TypeAutoclavable
-
Diameter Of Drill Chuc0.6-6mm/0.6-8mm
-
Place of OriginEurope
-
Brand NameJeggar
-
CertificationCE
-
Model NumberND-2511
-
Minimum Order Quantity1
-
PriceContact Sales
-
Packaging DetailsAluminum case packing
-
Delivery Time1-5 work days
-
Payment TermsT/T, Western Union, MoneyGram
-
Supply Ability1000 sets per month
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
