600rpm Cannulated Surgical Drill Machine Orthopedic Products 1000rpm
- Dual functional cannulate drill for k-wire and interlocking nail surgery
- Resistant to high temperature and pressure up to 135℃
- Comes with various interface options like AO, Stryker, and Hudson
- Input Voltage: 110V-240V/50Hz
- Output Power: ≥120W
- Battery Capacity: 1800mAh
- Drill Speed: 650/1000rpm optional
- Noise level: ≤65db
- SKU
- MJ-0506
- Brand
- Jeggar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview

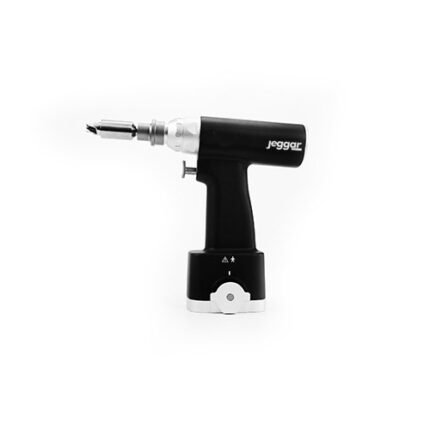

The powerful and stable dual functional cannulate drill is mainly used for holding k-wire, intraumedullary interlocking nail surgery and arthroscopic surgery. It can resist high temperature and high pressure up to 135 centigrade, Besides, we can offer different interfaces like AO, Stryker, Hudson etc.
| SPECIFICATION | STANDARD CONFIGURATION | ||
| Input Voltage | 110V-240V/50Hz | Drill handpiece | 1pc |
| Output Power | ≥120W | Charger | 1pc |
| Battery Capacity | 1800mAh | Battery | 2pcs |
| Drill Speed | 650/1000rpm optional | Aseptic battery transfer ring | 2pcs |
| Sterilizing Temperature | 135℃ | Drill chuck | 1pc |
| Drill chuck clamping diameter | 0.6-6/0.8/8mm | Key | 1pc |
| Noise | ≤65db | Operating manual | 1pc |
| Battery charging time | 2 hours | Aluminum case | 1pc |
| Unit rise of temperature | ≤20℃ | Sterilization case | Optional |
1,Aseptic battery transfer ring 2,Battery 3,Charger 4,Drill chuck
5,Handpiece 6,Button 7,Handle 8,Lid 9,Key
-
Highlight
600rpm Cannulated Drill Machine
,Cannulated Drill Machine 1000rpm
,orthopedic surgical products Jeggar
-
PropertiesOrthopedic Surgical Instruments
-
TypeAwl
-
ApplicationOrthopedic Instruments Broken Screw Extractor
-
UsageSurgical Power Tools
-
CertificateCE ISO13485
-
Warranty2 Years
-
Max. Drilling Diameter4.2mm
-
No-Load Speed600-1000r.m.p
-
Drill TypeAutoclavable
-
Diameter Of Drill Chuc0.6-6mm/0.6-8mm
-
Place of OriginEurope
-
Brand NameJeggar
-
CertificationCE
-
Model NumberND-2511
-
Minimum Order Quantity1
-
PriceContact Sales
-

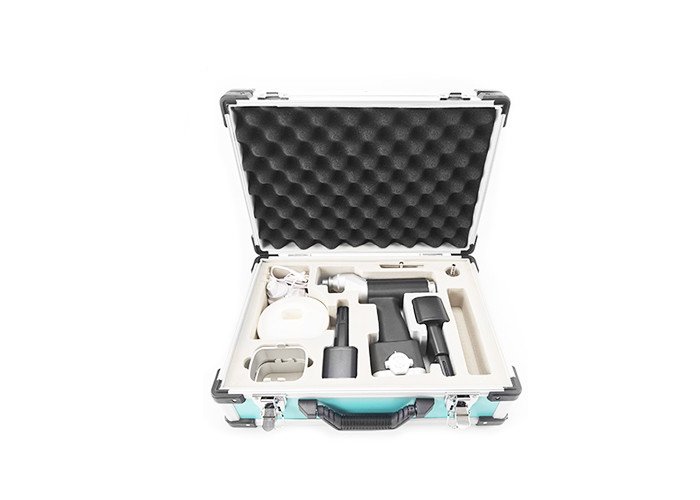

Packaging DetailsAluminum case packing
-
Delivery Time1-5 work days
-
Payment TermsT/T, Western Union, MoneyGram
-
Supply Ability1000 sets per month
